Overhead Radiant Systems

Dynacon Eclipse

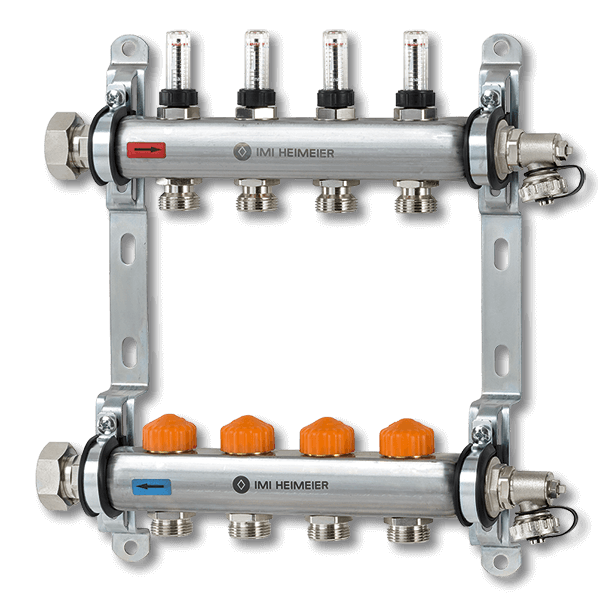

IMI Heimeier AFC Dynacon Eclipse

Description

Manifold kit from 2 up to 12 ports

Size:
DN 15
Connection:
G 3/4 Eurocone
Pipe diameter:
8 - 20 mm

Application range (typical values at terminal unit)

Flow rang:
30 – 300 l/h
Temperature difference:
5 to 10 K
Temperature:
17 to 35°C
Differential pressure (ΔpV):
15 to 45 kPa
Heat Output:
350 to 3500 Watt
Space Cooling:
170 to 1750 Watt
Pressure Class (PN):
6 bar

Technical Data

Please find out more about the product details on our dedicated product page.
